| 主要技术指标 |
| 指标内容 |
指标值 |
| 工作环境湿度 |
≤95%,允许短时凝露 |
| 工作环境温度 |
-45℃～+150℃ |
| 耐受电流试验 |
10倍额定电流1S |
| 绝缘介电强度 |
工频交流10000V 1min 无击穿闪络现象 |
| 绝缘电阻 |
IV级 |
| 污染等级 |
R＞10MΩ |
| 工作电压 |
AC:600V-6000V(50～60Hz) |

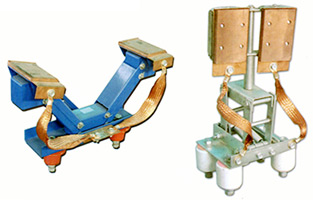

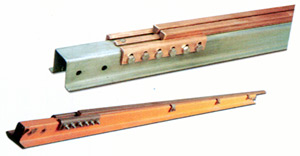

| 集电器运行速度 |
U:360 m/min | |
| |
| 1、BHGP拼装型 |
|
|
| 主要技术参数 |
| 序号 |
型号规格 |
截面积m2 |
截流量A |
电阻Ω/km |
阻抗Ω/km |
| 1 |
BHGP-85/400 |
85 |
400 |
0.2118 |
0.2896 |
| 2 |
BHGP-110/500 |
110 |
500 |
0.1636 |
0.2545 |
| 3 |
BHGP-170/630 |
170 |
630 |
0.1059 |
0.2098 |
| 4 |
BHGP-240/800 |
240 |
800 |
0.0750 |
0.1888 |
| 5 |
BHGP-320/1000 |
320 |
1000 |
0.0563 |
0.1730 |
| 6 |
BHGP-420/1250 |
420 |
1250 |
0.0429 |
0.1653 |
| 7 |
BHGP-550/1600 |
550 |
1600 |
0.0327 |
0.1541 |
| 8 |
BHGP-700/2000 |
700 |
2000 |
0.0257 |
0.1421 |
| 9 |
BHGP-170Ⅱ/1250 |
340 |
1250 |
0.0529 |
0.1533 |
| 10 |
BHGP-240Ⅱ/1600 |
480 |
1600 |
0.0375 |
0.1451 |
| 11 |
BHGP-320Ⅱ/2000 |
640 |
2000 |
0.0282 |
0.1347 |
| 12 |
BHGP-420Ⅱ/2500 |
840 |
2500 |
0.0215 |
0.1286 |
| 13 |
BHGP-550Ⅱ/3150 |
1100 |
3150 |
0.0164 |
0.1068 |
| 14 |
BHGP-700Ⅱ/4000 |
1400 |
1400 |
0.0129 |

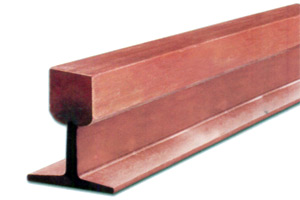

0.1060 | |
| |
| 2、BHGF复合型 |
|
|
| 主要技术参数 |
| 序号 |
型号规格 |
截面积m2 |
截流量A |
电阻Ω/km |
阻抗Ω/km |
| 1 |
BHGF-100/500 |
100 |
500 |
0.180 |
0.2594 |
| 2 |
BHGF-150/630 |
150 |
630 |
0.120 |
0.2198 |
| 3 |
BHGF-200/800 |
200 |
800 |
0.090 |
0.1957 |
| 4 |
BHGF-300/1000 |
300 |
1000 |
0.060 |
0.1741 |
| 5 |
BHGF-400/1250 |
400 |
1250 |
0.045 |
0.1640 |
| 6 |
BHGF-500/1600 |
500 |
1600 |
0.036 |
0.1556 |
| 7 |
BHGF-650/2000 |
650 |
2000 |
0.028 |
0.1466 |
| 8 |
BHGF-800/2500 |
800 |
2500 |
0.023 |
0.1416 |
| 9 |
BHGF-1000/3150 |
1000 |
3150 |
0.018 |
0.1261 |
| 10 |
BHGF-1200/3500 |
1200 |
3500 |
0.015 |
0.1173 |
| 11 |
BHGF-1400/4000 |
1400 |
4000 |
0.013 |
0.1112 |
| 12 |
BHGF-1800/5000 |
1800 |
5000 |
0.010 |
0.0911 | |
| |
| 3、BHGZ整体型 |
|
|
| 主要技术参数 |
| 序号 |
型号规格 |
截面积mm2 |
截流量A |
电阻Ω/km |
阻抗Ω/km |
| 1 |
BHGZ-800/2500 |
800 |
2500 |
0.023 |
0.1079 |
| 2 |
BHGZ-1000/3150 |
1000 |
3150 |
0.018 |
0.1031 |
| 3 |
BHGZ-1200/3500 |
1200 |
3500 |
0.015 |
0.1021 |
| 4 |
BHGZ-1400/4000 |
1400 |
4000 |
0.013 |
0.1004 |
| 5 |
BHGZ-1800/5000 |
1800 |
5000 |
0.010 |
0.0972 |
| 6 |
BHGZ-2300/6000 |
2300 |
6000 |
0.008 |
0.0784 | |
| |
| 4、BHGQ嵌入型 |
|
|
| 主要技术参数 |
| 序号 |
型号规格 |
截面积mm2 |
截流量A |
电阻Ω/km |
阻抗Ω/km |
| 1 |
BHGQ-85/100 |
85 |
400 |
0.2118 |
0.2896 |
| 2 |
BHGQ-110/500 |
110 |
500 |
0.1636 |
0.2545 |
| 3 |
BHGQ-170/630 |
170 |
630 |
0.1059 |
0.2098 |
| 4 |
BHGQ-240/800 |
240 |
800 |
0.0750 |
0.1888 |
| 5 |
BHGQ-320/1000 |
320 |
1000 |
0.0563 |
0.1730 |
| 6 |
BHGQ-420/1250 |
420 |
1250 |
0.0429 |
0.1653 |
| 7 |
BHGQ-550/1600 |
550 |
1600 |
0.0327 |
0.1541 |
| 8 |
BHGQ-750/2000 |
750 |
2200 |
0.0240 |
0.1421 |
| 9 |
BHGQ-950/3150 |
950 |
3000 |
0.0189 |
0.1058 |
| 10 |
BHGQ-320Ⅱ/2000 |
640 |
2000 |
0.0282 |
0.1347 |
| 11 |
BHGQ-420Ⅱ/2500 |
840 |
2500 |
0.0215 |
0.1286 |
| 12 |
BHGQ-550Ⅱ/3150 |
1100 |
3150 |
0.0164 |
0.1068 |
| 13 |
BHGQ-770Ⅱ/4000 |
1400 |
4000 |
0.0129 |
0.1060 | |
