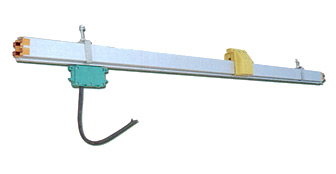

| GHG型铝壳多极滑触线 |
|
|
|
|
| 主要技术指标 |
| 序号 |
型号规格 |
可选极数 |
截面积mm2 |
截流量A |
外形尺寸mm |
电阻Ω/km |
阻抗Ω/km |
| 1 |
BHFJ-4-10/50 |
3～5 |
10 |
50 |
66×86 |
1.800 |
1.897 |
| 2 |
BHFJ-4-16/80 |
16 |
80 |
1.125 |
1.192 |
| 3 |
BHFJ-4-25/100 |
25 |
100 |
0.720 |
0.771 |
| 4 |
BHFJ-4-35/130 |
35 |
130 |
0.514 |
0.559 |
| 5 |
BHFJ-4-50/170 |
50 |
170 |
0.360 |
0.404 |
| 6 |
BHFJ-4-70/210 |
70 |
210 |
0.257 |
0.304 |
| 7 |
BHFJ-4-95/270 |
95 |
270 |
0.189 |
0.241 |
| 8 |
BHFJ-7-10/50 |
5～7 |
10 |
50 |
67×90 |
1.800 |
1.897 |
| 9 |
BHFJ-7-16/80 |
16 |
80 |
1.125 |
1.192 |
| 10 |
BHFJ-7-25/100 |
25 |
100 |
70×110 |
0.720 |
0.771 |
| 11 |
BHFJ-7-35/130 |
35 |
130 |
0.514 |
0.559 |
| 12 |
BHFJ-10-10/50 |
8～10 |
10 |
50 |
70×110 |
1.800 |
1.897 |
| 13 |
BHFJ-16-10/80 |
16 |
80 |
1.125 |
1.192 |
| 14 |
BHFJ-25-10/100 |
25 |
100 |
0.720 |
0.771 |
| 15 |
BHFJ-16-10/50 |
12～16 |
10 |
50 |
106×152 |
1.800 |
1.897 |
| 16 |
BHFJ-16-16/85 |
16 |
80 |
1.125 |
1.192 |
| 17 |
BHFJ-3-70/210 |
3 |
70 |
210 |
80×100 |
0.257 |
0.304 |
| 18 |
BHFJ-3-95/270 |
95 |
270 |
0.189 |
0.242 |
| 19 |
BHFJ-3-120/320 |
120 |
320 |
0.150 |
0.204 |
| 20 |
BHFJ-3-150/360 |
150 |
360 |
0.120 |
0.195 |
| 21 |
BHFJ-4-95/270 |
4～5 |
95 |
270 |
85×120 |
0.189 |
0.240 |
| 22 |
BHFJ-4-120/320 |
120 |
320 |
0.150 |
0.254 |
| 23 |
BHFJ-4-150/360 |
150 |
360 |
0.120 |
0.195 | | |
